❯ MGT 2010 Laser Monitoring System | Acoustic Room Monitoring System Room Monitoring Surveillance System
_Description
The MGT 2010 Laser Monitoring System / Acoustic Room Monitoring System is a professional device that uses a laser microphone to listen through windows. It is designed for acoustic surveillance and observation of a room through an invisible laser beam.
This innovative audio monitoring technology directs an invisible laser beam towards the window of the target room. The window pane vibrates slightly in response to the sound waves produced by speech.
A receiver captures the reflected beam, which is modulated by the vibrations of the window pane. The audio signal is then amplified using a special low noise amplifier.
The output audio signal can be accessed through an adjustable headphone plug and a line out plug. Adjustable high and low pass filters are used to enhance the received audio signal.
A laptop serves as a monitor and audio recorder, with a connection box that includes a video grabber for connection to the laptop via USB.

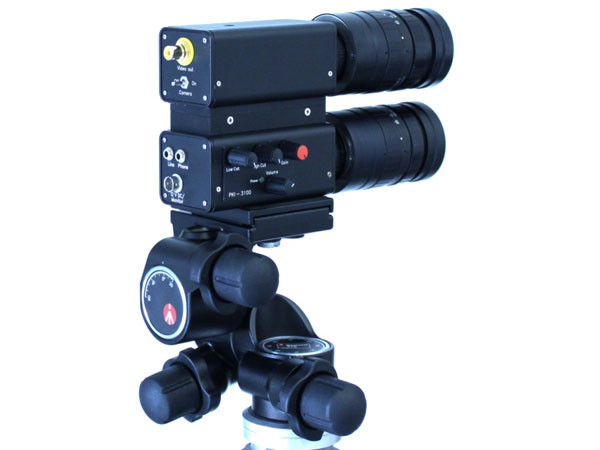

The MGT 2010 Laser Monitoring System consists of the following parts: a laser transmitter, an optical reception system, a laptop with data processing software and a video/data converter to connect to the laser.

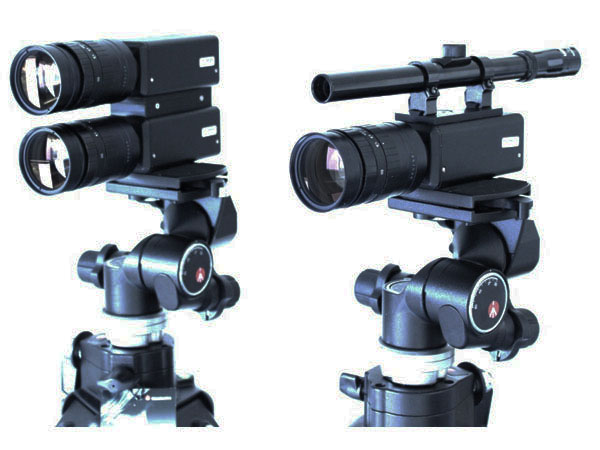

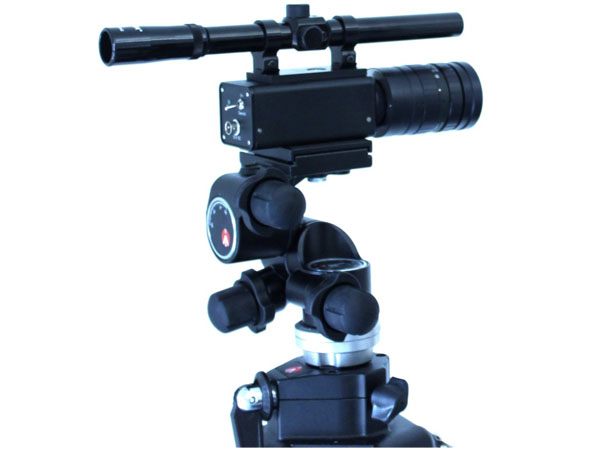

Both the transmitter and the receiver are mounted on tripods just to provide different shooting angles as well as to ensure an optimum alignment of laser beams.
Furthermore the headphones used for in ear listening will allow you to get a unique audio monitoring experience at the highest market standards.
_OVERVIEW /KEY POINTS:
Invisible laser to the human eye;
A highly directional microphone with a range of up to 200 meters, subject to adverse weather conditions;
