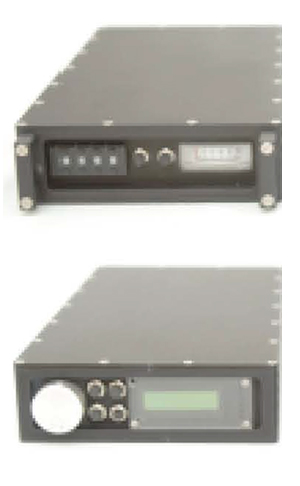

The MGT RV-2000 AMS & MK2 is a professional analogue video receiver equipped with advanced features. It boasts a front panel where precise adjustments can be made using preset switches at 1MHz intervals,
The frequency range can be expanded from 2015MHz to 2700MHz using a converter.
The MGT RV-2000 AMS & MK2 offers the option of diversity switching with the RV 2300D, as well as a stereo upgrade.
The unit includes A & B switching for the audio sub-carrier frequencies of either 5.5 MHz or 7.2 MHz.
The front panel features an RF level meter.
The power requirement is 12Vdc.
The frequency range can be expanded from 2015MHz to 2700MHz by using a converter.
The unit comes in a sturdy aluminum housing measuring 103mm x 42mm x 168mm. A full range of antenna are available depending on application.
This product is CE and FCC approved.
_Technical specifications:
MGT 123 100mW:
Frequency: Range L Band 950 MHz - 2050 MHz (PLL), S Band (2051 MHz-3 GHz);
Optional Frequencies: 330-450 MHz with converter;
Programmable steps: 1 MHz digital;
Input impedance: 50 Ohm SMA or N type connector;
Video deviation: 27/16MHz SAW filter 479.5MHz;
Video output: 1 Vpp on 75 Ohm adjustable (PAL or NTSC).
MGT 124 500mW:
