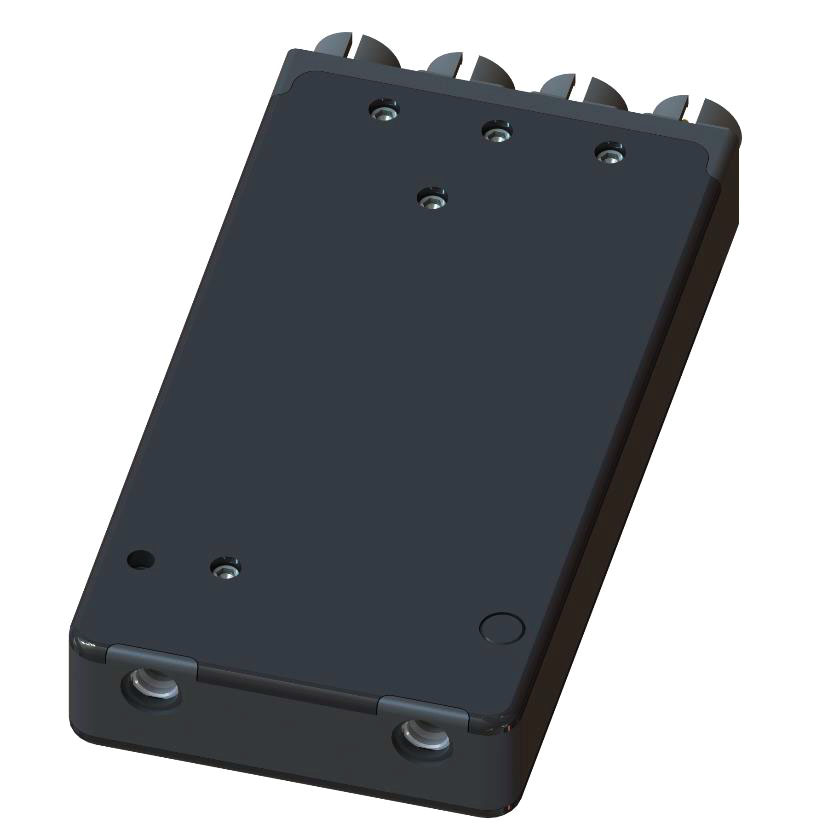

MGT Clip-DR — 4G Digital Audio Video Radio Transmitter
Covert Video Recorder
The MGT Clip-DR delivers a compact digital audio/video radio link designed for discreet deployments. The integrated H.264 video codec can be adjusted to meet bitrate targets from 150 Kb up to 1.5 Mb, supporting operational constraints where bandwidth and link budget must be balanced.
Main features
- COFDM transmission with variable bandwidth from 200 kHz to 2.0 MHz and radio bit rate from 200 kbps to 2.4 Mbps.
- Supports UHF-Low, UHF-High and 2.4G without hardware modification.
- Operates in single-band mode or dual-band mode using one UHF band and 2.4G at the same time.
- Composite video I/O (PAL/NTSC Full D1).
- Stereo audio I/O (line or microphones on TX; line-out on RX).
- Receiver options include integrated monitor, USB storage and RTSP streaming.
Technical overview
Transmitter
| Video input | Composite, 1 Vpp, 75 Ω |
|---|---|
| Standard video | PAL (NTSC), Full D1 |
| Audio input | Stereo, 1 Vpp; line-in or microphones |
| Bidirectional data link | Available (details on request) |
| Antenna system | 2 external: Sub-GHz and 2.4G |
| Power consumption (12 V) | 130 mA (standard 14 dBm) |
Receiver
| Video output | Composite, 1 Vpp, 75 Ω |
|---|---|
| Standard video | PAL (NTSC), Full D1 |
| Audio output | Stereo, 1 Vpp; line-out |
| Audio sampling | 16-bit, 16 kHz (option 48 kHz) |
| Integrated monitor | 5" |
| Storage system | USB up to 400 GB |
| Streaming function | RTSP |
Procurement, compliance & support
Supply is restricted to qualified government, defence and law-enforcement customers or accredited partners. End-use and export controls may apply; local spectrum regulations must be observed. We provide confidential datasheets, integration guidance, operator training and lifecycle support.
